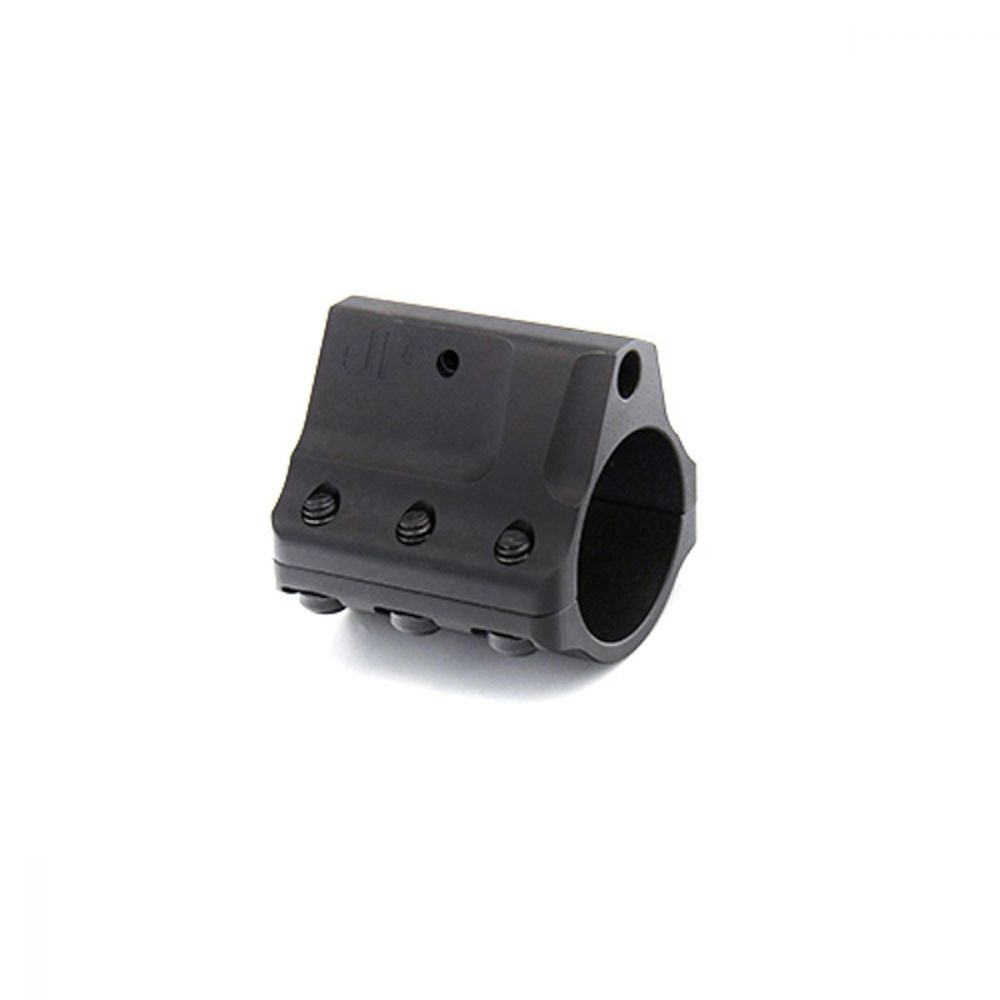

JP 2-PIECE ADJUSTABLE GAS BLOCK – .875 BORE

The JPGS-10D is JP’s minimized small-bore design intended to mount underneath many hand guard models on the market. Its two-piece design allows for easier installations even on barrels with pin-and-weld muzzle treatments.

This model features a click-adjustable detent system for precise adjustments and secure retention of your gas screw. Never lose you gas setting or screw.

FEATURES:

• Click-adjustable detent system for repeatable setup and secure retention of gas setting
• Five clicks per rotation of gas screw for finer adjustments
• Two-piece design for easy installation even on pin-and-weld barrels
• Easy to access side gas adjustment
• Internally retained detent components means no lost parts

TECHNICAL SPECIFICATIONS:

• Barrel Diameter: .875
• Material: 416 stainless
• Finish: Black
• Weight: 2.4 oz.
• Length: 1.28″
• Height: 1.32″ (overall), .80″ (over bore)
• Width: 1.28″
• Attachment: 6-32 x 3/8″ socket head screws, T15 Torx drive (included)
• (includes 5/64 x 5/16 roll pin for gas tube installation)
• Adjustment: 6-32, 1/16 hex drive (included)
